Description
Bulkheads Elbow with Female Thread Greasing Aid
Varations:

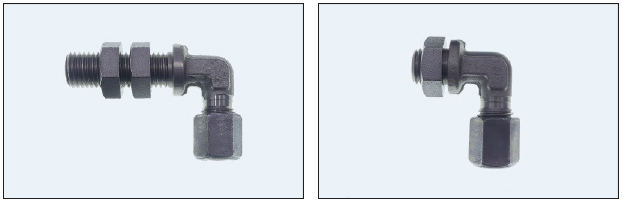

#1019-001 Bulkheads Elbow 54 mm Length with Female Thread Greasing Aid
#1019-002 Bulkheads Elbow 30 mm Length with Female Thread Greasing Aid
Bulkhead fittings with grease nipples are essential for reaching lubrication points that are challenging to access, such as those behind covers, protective walls, or other obstructions. These fittings can be used for classic manual lubrication or as an emergency lubrication function, which is critical in central lubrication systems.
Our bulkhead fitting with grease nipple is a versatile solution compatible with all common grease guns. The grease is efficiently delivered to the lubrication point through the grease nipple and the bulkhead screw connection.
The bulkhead fitting can be directly screwed onto the lubrication point with a cutting ring fitting, or it can be connected using a high-pressure hose or plastic tube. This makes it indispensable for the maintenance and servicing of lubrication systems in construction machinery, construction vehicles, and industrial plants. The bulkhead screw connection ensures reliable lubrication, enhancing the longevity and performance of your equipment.

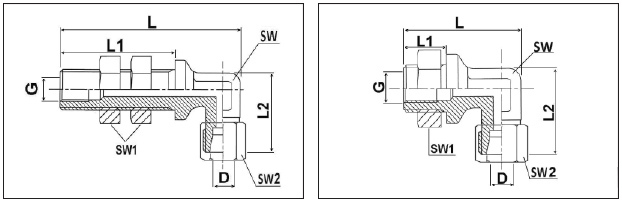

Technical Information
1091-001
- Material: Steel with zinc-nickel coating, chrome-VI free
- Diameter (D): 6 mm
- Thread Size (G): M 6 x 1
- Total Length (L): 54 mm
- Length from Base to Elbow (L1): 34 mm
- Length of Threaded Part (L2): 24 mm
- Width Across Flats (SW): 12 mm
- Secondary Width Across Flats (SW1): 17 mm
- Tertiary Width Across Flats (SW2): 14 mm
1091-002
- Material: Steel with zinc-nickel coating, chrome-VI free
- Diameter (D): 6 mm
- Thread Size (G): M 6 x 1
- Total Length (L): 30 mm
- Length from Base to Elbow (L1): 11 mm
- Length of Threaded Part (L2): 24 mm
- Width Across Flats (SW): 12 mm
- Secondary Width Across Flats (SW1): 17 mm
- Tertiary Width Across Flats (SW2): 14 mm
Additional Information
Contact Us Online for more information on Bulkhead Fittings, or to determine if our lubrication equipment is the right choice for your application call us at (413) 788-5823.
