Description

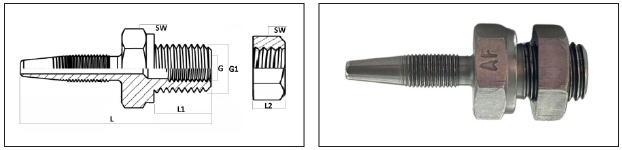

Bulkheads Straight Hose Stud with Zerk Fitting Port

Secure bulkhead fittings with hose stud connection and grease outlet port for centralized lubrication systems.

These straight bulkhead fittings are designed to pass lubricant through panels or machine frames while providing a stable connection for high-pressure hoses. Each fitting features a built-in hose stud for 8.6 mm hose and an M6 x 1 Zerk fitting port for grease metering. The hex shoulder and O-ring ensure leak-free installation into bulkhead surfaces, making them ideal for centralized lubrication system builds.

Features

Bulkhead mount with hose stud for 8.6 mm high-pressure hose
Integrated M6 x 1 Zerk port for grease outlet
Hex shoulder with O-ring for stable and sealed installation
Compatible with reusable threaded sleeves

Variations

1020-003 M6 x 1 Zerk Port x M12 x 1.5 Bulkhead – with Hose Stud for 8.6 mm Hose
1020-004 M6 x 1 Zerk Port x M10 x 1 Bulkhead – with Hose Stud for 8.6 mm Hose

Material & Benefits: Steel Zinc-nickel (CrVIF)

Our steel fittings feature a Zinc-nickel (CrVIF) alloy coating, electroplated directly onto the surface for superior corrosion resistance and durability. This finish combines approximately 10–15% nickel with zinc to form a hard, smooth, and long-lasting protective layer, making it an ideal alternative to traditional zinc or cadmium coatings.

Benefits of Zinc-nickel Coating
