Coupling Socket with Return Flow Port – Male End
Designed for pressure relief and reliable grease system connection.
SKU: 100-226

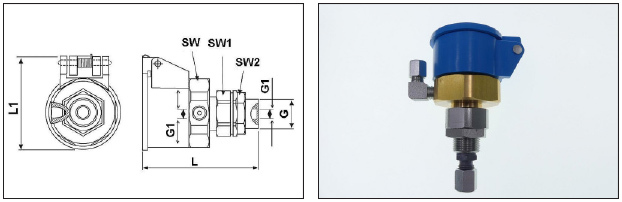

This coupling socket with return flow port is the male half of the quick disconnect grease coupling assembly. Installed on the lube system side (typically mounted to the machine or equipment frame), it allows for a secure and pressure-relieving connection to implements or attachments.
The integrated return port enables excess grease to safely escape when uncoupling, preventing pressure buildup in the line. This fitting is designed for use with a compatible coupling plug (implement side) and is part of a modular grease system connection setup.
Important Note
Coupling sockets must always be used in combination with coupling plugs for proper function. Not compatible with fluid systems under continuous pressure.
Common Applications
- Mobile machinery and trailers with interchangeable implements
- Quick-connect lubrication systems with pressure relief needs
Benefits
- Brass body with durable steel fittings
- Built-in return flow port ensures safe disconnection
- Connects to a matching coupling plug for quick hose changes
- Protective dust cover prevents debris contamination
Additional Information
For more information about Coupling Sockets, or to determine if this product is right for your application, contact us online or at (413) 788-5823.
