Elbow Compression Fittings
90° compression fittings for angled tube connections in lubrication systems.
These elbow compression fittings are designed to create 90° directional changes in centralized lubrication system tubing. Ideal for routing lines around obstacles or into confined areas, they provide a secure, leak-resistant connection using a 24° DIN cone with a coupling nut and compression ring. Built to DIN 2353 and ISO 8434-1 standards, and available in LL, L, or S pressure series depending on tube and thread size.
Variations

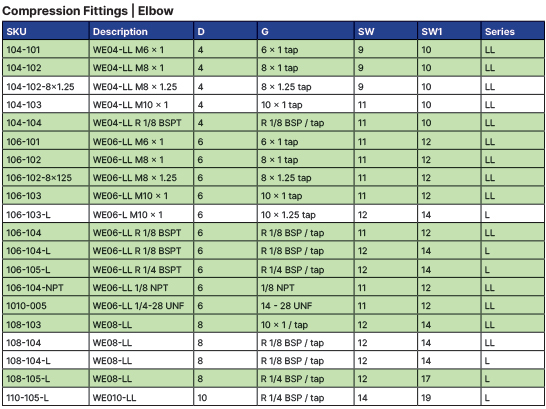

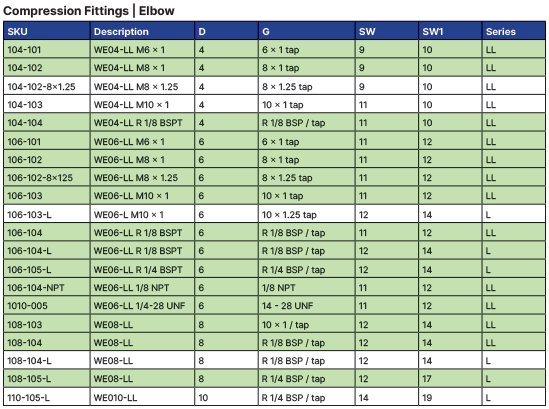

- 4 mm Tube × M6x1 Male Thread · LL (104-101)
- 4 mm Tube × M8x1 Male Thread · LL (104-102)
- 4 mm Tube × R 1/8 BSPT Male Thread · LL (104-104)
- 6 mm Tube × M6x1 Male Thread · LL (106-101)
- 6 mm Tube × M8x1 Male Thread · LL (106-102)
- 6 mm Tube × M8x1.25 Male Thread · LL (106-102-8x1.25)
- 6 mm Tube × M10x1 Male Thread · LL (106-103)
- 6 mm Tube × R 1/8 BSPT Male Thread · LL (106-104)
- 6 mm Tube × R 1/8 BSPT Male Thread · L (106-104-L)
- 6 mm Tube × R 1/4 BSPT Male Thread · L (106-105-L)
- 6 mm Tube × 1/8 NPT Male Thread · LL (106-104-NPT)
- 6 mm Tube × 1/4-28 UNF Male Thread · LL (1010-005)
- 8 mm Tube × M10x1 Male Thread · LL (108-103)
- 8 mm Tube × R 1/8 BSPT Male Thread · LL (108-104)
- 8 mm Tube × R 1/4 BSPT Male Thread · L (108-105-L)
Material & Benefits: Steel Zinc-nickel (CrVIF)
Our steel fittings feature a Zinc-nickel (CrVIF) alloy coating, electroplated directly onto the surface for superior corrosion resistance and durability. This finish combines approximately 10–15% nickel with zinc to form a hard, smooth, and long-lasting protective layer—making it an ideal alternative to traditional zinc or cadmium coatings.
Benefits of Zinc-nickel Coating
- Provides up to 10x more corrosion resistance than standard zinc
- Offers improved wear resistance for moving parts
- Withstands thermal stress better than conventional finishes
- Commonly used in automotive and aerospace applications
Additional Information
For more information about compression fittings, or to determine if this product is right for your application, contact us online or at (413) 788-5823.
