Description
Straight Adapters, Extensions & Reducers
Reliable connection fittings for extending or adapting lubrication lines in centralized systems.
These straight fittings are used to connect, extend, or reduce line sizes between lubrication components in centralized lubrication systems. Ideal for construction equipment, industrial machinery, and mobile applications, they provide secure, leak-resistant connections in tight or hard-to-reach areas. Each fitting integrates easily with tubing, manifolds, or distribution blocks to maintain consistent lubricant flow.
Features
- Extend or adapt lubrication lines in centralized systems
- Connect to tubing, hoses, or manifold ports
- Compatible with compression and push-in fittings
- Function as adapters, extensions, or reducers

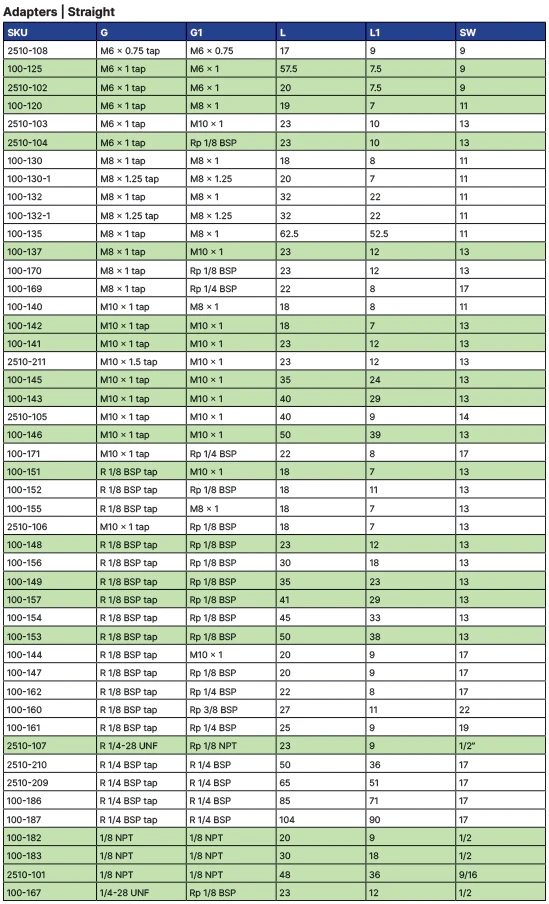

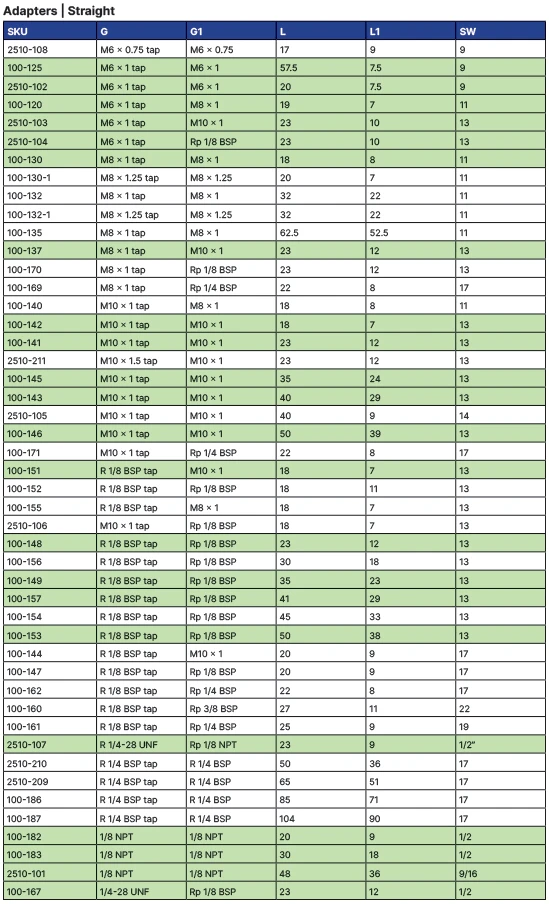

Variations
- M6x1 Male Thread × M6x1 Female Thread · L: 57.5 mm (100-125)
- M6x1 Male Thread × M6x1 Female Thread · L: 20 mm (2510-102)
- M6x1 Male Thread × M8x1 Female Thread · L: 19 mm (100-120)
- M6x1 Male Thread × M10x1 Female Thread · L: 23 mm (2510-103)
- M6x1 Male Thread × Rp 1/8 BSPP Female Thread · L: 23 mm (2510-104)
- M8x1 Male Thread × M8x1 Female Thread · L: 18 mm (100-130)
- M8x1 Male Thread × M10x1 Female Thread · L: 23 mm (100-137)
- M10x1 Male Thread × M10x1 Female Thread · L: 18 mm (100-142)
- M10x1 Male Thread × M10x1 Female Thread · L: 23 mm (100-141)
- M10x1 Male Thread × M10x1 Female Thread · L: 35 mm (100-145)
- M10x1 Male Thread × M10x1 Female Thread · L: 50 mm (100-146)
- M10x1 Male Thread × M10x1 Female Thread · L: 40 mm (100-143)
- R 1/8 BSPT Male Thread × M10x1 Female Thread · L: 18 mm (100-151)
- R 1/8 BSPT Male Thread × Rp 1/8 BSPP Female Thread · L: 23 mm (100-148)
- R 1/8 BSPT Male Thread × Rp 1/8 BSPP Female Thread · L: 35 mm (100-149)
- R 1/8 BSPT Male Thread × Rp 1/8 BSPP Female Thread · L: 41 mm (100-157)
- R 1/8 BSPT Male Thread × Rp 1/8 BSPP Female Thread · L: 50 mm (100-153)
- 1/4-28 UNF Male Thread × 1/8 NPT Female Thread · L: 23 mm · Replaces Bijur® 20-1 (2510-107)
- 1/8 NPT Male Thread × 1/8 NPT Female Thread · L: 20 mm (100-182)
- 1/8 NPT Male Thread × 1/8 NPT Female Thread · L: 30 mm (100-183)
- 1/8 NPT Male Thread × 1/8 NPT Female Thread · L: 48 mm (2510-101)
- 1/4-28 UNF Male Thread × Rp 1/8 BSPP Female Thread · L: 23 mm (100-167)
Also available in Stainless Steel.
Additional Information
Need help selecting the right adapter extension for your application? Contact us online or at (413) 788-5823.
