Description
Straight Adapters, Extensions & Reducers
Reliable connection fittings for extending or adapting lubrication lines in centralized systems.
These straight fittings are used to connect, extend, or reduce line sizes between lubrication components in centralized lubrication systems. Ideal for construction equipment, industrial machinery, and mobile applications, they provide secure, leak-resistant connections in tight or hard-to-reach areas. Each fitting integrates easily with tubing, manifolds, or distribution blocks to maintain consistent lubricant flow.
Features
- Extend or adapt lubrication lines in centralized systems
- Connect to tubing, hoses, or manifold ports
- Compatible with compression and push-in fittings
- Function as adapters, extensions, or reducers

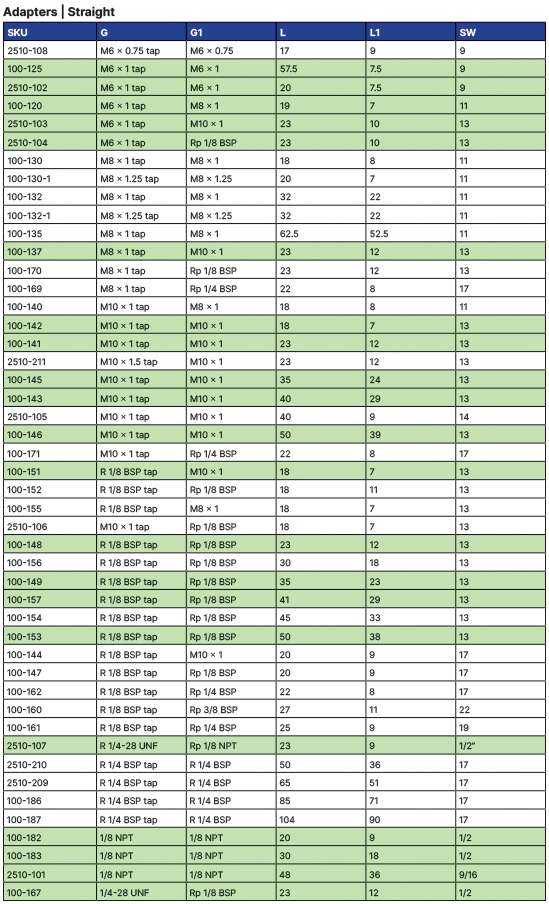

Variations
- M6x1 Male × M6x1 Female · L 57 (100-125)
- M6x1 Male × M6x1 Female · L 20 (2510-102)
- M6x1 Male × M8x1 Female · L 19 (100-120)
- M6x1 Male × 1/8 BSP Female · L 23 (2510-104)
- M6x1 Male × M10x1 Female · L 23 (2510-103)
- M8x1 Male × M10x1 Female · L 23 (100-137)
- M10x1 Male × M10x1 Female · L 18 (100-142)
- M10x1 Male × M10x1 Female · L 23 (100-141)
- M10x1 Male × M10x1 Female · L 35 (100-145)
- M10x1 Male × M10x1 Female · L 40 (100-143)
- M10x1 Male × M10x1 Female · L 50 (100-146)
- 1/8 BSP Male × M10x1 Female · L 18 (100-151)
- 1/8 BSP Male × 1/8 BSP Female · L 23 (100-148)
- 1/8 BSP Male × 1/8 BSP Female · L 35 (100-149)
- 1/8 BSP Male × 1/8 BSP Female · L 41 (100-157)
- 1/8 BSP Male × 1/8 BSP Female · L 50 (100-153)
- 1/8 NPT Male × 1/8 NPT Female · L 20 (100-182)
- 1/8 NPT Male × 1/8 NPT Female · L 30 (100-183)
- 1/8 NPT Male × 1/8 NPT Female · L 48 (2510-101)
- 1/4-28 UNF Male × 1/8 BSP Female · L 23 (100-167)
- 1/4-28 UNF Male × 1/8 NPT Female · Replaces 20-1 (2510-107)
Also available in Stainless Steel.
Additional Information
Need help selecting the right adapter extension for your application? Contact us online or at (413) 788-5823.
