Description
Straight Hose-to-Hose Union Assembly for 8.6 mm High-Pressure Hose
SKU: AS061-050
This hose union assembly provides a durable, pressure-rated connection between two sections of 8.6 mm OD high-pressure hose in centralized lubrication systems. Using a precision-machined straight hose stud and dual threaded sleeves, it forms a reliable, leak-resistant junction capable of withstanding demanding grease or oil service conditions. Designed for use in industrial and mobile applications, this assembly enables quick, clean hose extensions or repairs without compromising system integrity.
Assembly Includes

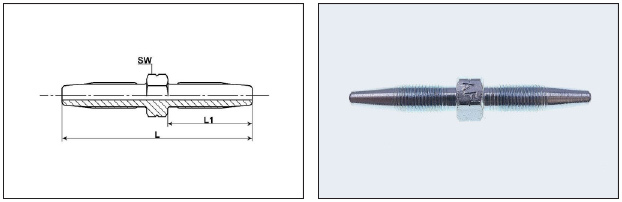

- 100-061 | Straight Hose Stud – 8 mm stud for 8.6 mm OD hose (L = 56 mm, L₁ = 25 mm)

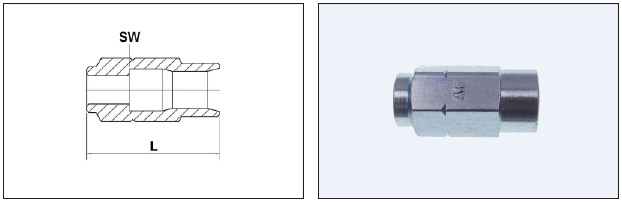

- 100-050 | Threaded Sleeves (x2) – 28 mm each, securing both hose ends
Material & Coating
Constructed from steel with Zinc-Nickel (CrVIF) coating, providing enhanced corrosion protection and long-term durability.
Technical Overview
- Connects two sections of 8.6 mm OD high-pressure hose
- Rated for working pressure up to 840 bar (12,184 psi)
- Suitable for centralized lubrication systems using grease or oil
- Straight in-line configuration for compact, efficient installations
- Provides a strong, vibration-resistant seal
Typical Applications
- Centralized lubrication systems on industrial or mobile equipment
- In-line hose extensions, splices, or service connections under pressure
- Equipment where compact hose routing and high reliability are required
Additional Information
For ordering assistance, material alternatives, or technical support, contact Lubrication Technologies at (413)-788-5823 or Contact Us Online.
