Description
Straight JIC Assembly with Threaded Sleeve – for 8.6 mm High-Pressure Hose
SKU: LT-SF101
This straight JIC assembly provides a durable, pressure-rated connection between lubrication lines and system components in centralized lubrication systems. Engineered for reliable performance under demanding operating conditions, it ensures leak-free transfer of grease or oil through precision-machined fittings. The design combines a threaded sleeve, hose stud, and JIC adapter to create a compact, corrosion-resistant assembly for use with 8.6 mm high-pressure hose rated to 840 bar.
Assembly Includes
- 100-050 | Threaded Sleeve – Secures 8.6 mm hose onto the hose stud to form a pressure-rated seal.

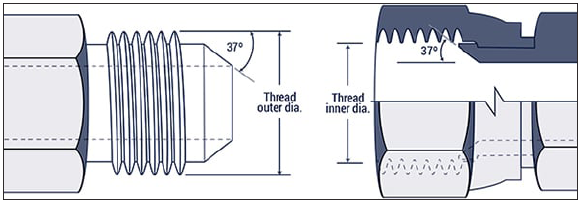

- 3510-114 | Straight JIC Hose Stud – 7/16-20 JIC 37° male flare thread for standardized high-pressure connections.

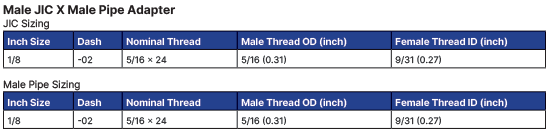

- 2404-02-04 | Male JIC × Male Pipe Adapter – Transitions from JIC 37° male flare to 1/8 NPT male pipe thread for direct integration with lubrication manifolds or junction blocks.
Material & Coating
- Threaded Sleeve and Hose Stud: Steel with Zinc-Nickel (CrVIF) coating for high corrosion resistance and long service life.
- Adapter: Steel with Clear Zinc Trivalent coating for a bright, RoHS-compliant finish.
Combination of coatings provides enhanced protection and easy component identification during installation.
Technical Overview
- Provides a leak-resistant, vibration-stable connection under pressure
- Suitable for centralized lubrication systems using grease or oil
- Designed for 8.6 mm high-pressure hose rated to 840 bar (12,184 psi)
- Straight-through configuration allows compact, efficient hose routing
Typical Applications
- Centralized grease and oil lubrication systems
- Manifold, junction block, and enclosure connections
- Industrial machinery and mobile equipment
