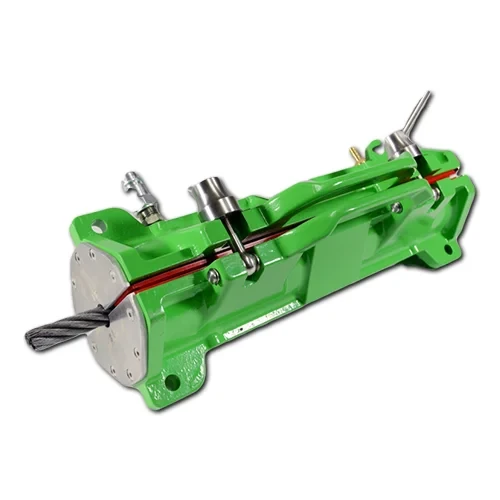

Viper Maxi MKII Wire Rope Lubricator Kit
Complete Wire Rope Lubrication Kit for 50 mm to 165 mm Wire Ropes
The Viper Maxi MKII Wire Rope Lubricator Kit provides fast, safe, and effective lubrication for wire ropes ranging from 50 mm to 165 mm (2"–6-1/2") in diameter. Capable of lubricating wire ropes at speeds up to 2,000 meters (6,670 feet) per hour, it replaces slow and labor-intensive manual lubrication methods by forcing lubricant under high pressure deep into the wire rope core for more complete coverage and longer service life.
Designed for large-diameter wire ropes used in demanding industrial applications, the Viper Maxi MKII features a high-strength cast aluminum collar with twin lubricant inlets for maximum lubricant coverage, stainless steel hardware, and a high-volume grease pump. The complete kit is supplied in a heavy-duty aluminum storage case. Seals and scraper plates are selected separately to match the wire rope diameter.
Kit Includes
- Viper Maxi MKII lubricator collar
- High-volume grease pump (4.5 kg/min)
- Air regulator with moisture trap
- Pressure gauge and isolation valve
- 10 m (33 ft.) high-pressure lubricant hose with couplings
- Clear lubricant drain hose
- 1,200 kg rated retaining ratchet straps and bow shackles
- Heavy-duty welded aluminum storage case
Optional: High-flow 13 kg/min grease pump for ropes larger than 85 mm (3.35").
Note: Seals and scraper plates are sold separately and selected based on the wire rope diameter.
Recommended Lubricants
The Viper Maxi MK2 is designed for use with approved wire rope lubricants, including:
- Monolec® Wirelife Penetrating Lubricant (2001)
- Almasol® Wirelife Rope Coating Lubricant (2002)
- Wirelife Coating Grease (451, 452, 453)
- Earthwise™ EAL Wire Rope Grease (3353)
Lubricants are sold separately.
Additional Information
Need help selecting the proper wire rope lubricant or determining if the Viper Maxi MK2 is the right solution for your application? Contact us online or call (413) 788-5823 to speak with one of our lubrication specialists.
