Description

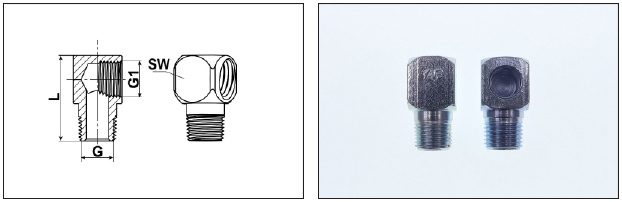

Adapters 90°
Reliable 90° adapters for redirecting lubrication lines in automatic lubrication systems.
These right-angle adapters are designed to adapt or extend connections between lubrication components where a sharp directional change is needed. Commonly used in construction equipment, industrial machinery, and mobile systems, they help route grease or oil lines around corners or into confined spaces. Each fitting connects easily to tubing, manifolds, or distribution blocks.
Features
- Route lubrication lines at a 90° angle in tight or complex layouts
- Connect to tubes, hoses, or manifold ports
- Compatible with compression or push-in style fittings
- Useful as reducers, directional connectors, or adapters

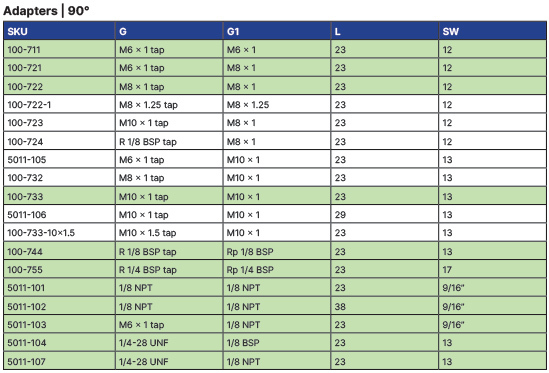

Variations
- 100-711 6x1mm male x 6x1mm female - L: 23
- 100-721 6x1mm male x 8x1mm female - L: 23
- 100-722 8x1mm male x 8x1mm female - L: 23
- 100-733 10x1mm male x 10x1mm female - L: 23
- 100-744 1/8" BSP male x 1/8" BSP female - L: 23
- 100-755 1/4" BSP male x 1/8" BSP female - L: 23
- 5011-101 1/8" NPT male x 1/8" NPT female - L: 23
- 5011-102 1/8" NPT male x 1/8" NPT female, L: 38 - replaces Lincoln™ 13129
- 5011-103 6x1mm male x 1/8" NPT female - L: 23
- 5011-104 1/4"-28 UNF male x 1/8" BSP female - L: 23
- 5011-107 1/4-28 UNF male x 1/8" NPT female - L: 23 - replaces Pt# 27718
Contact us for stainless steel options.
Additional Information
Need help selecting the right adapter extension for your application? Contact us online or at (413) 788-5823.
