Description

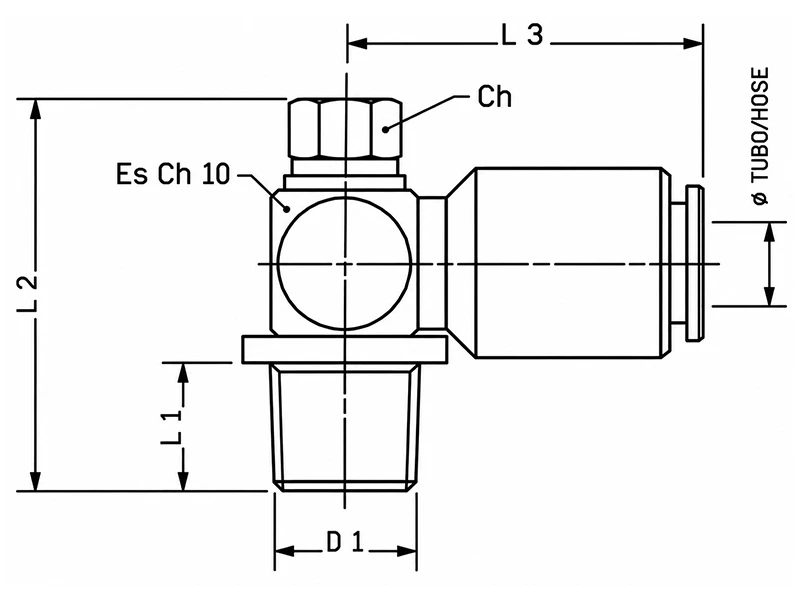

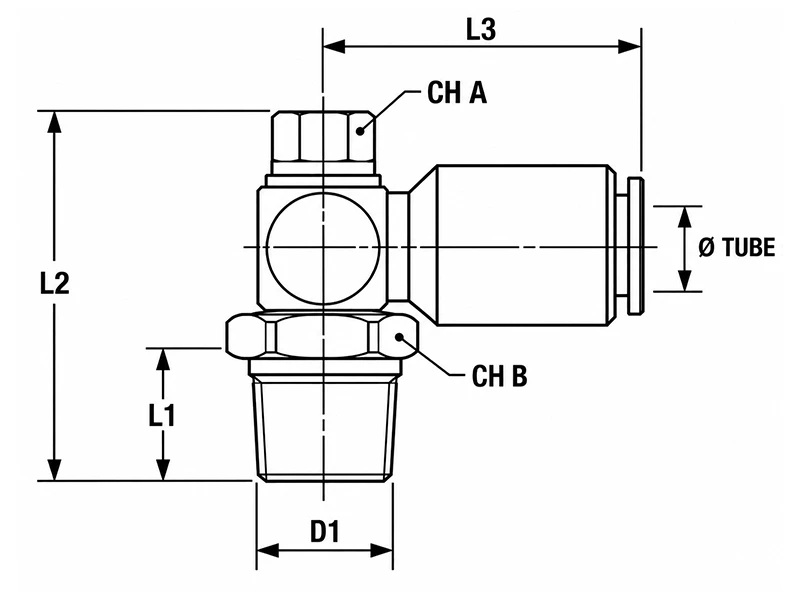

ILC 90° Push-In Fittings
90° high-pressure push-in fittings for centralized lubrication systems.
ILC 90° Push-In Fittings are designed for connecting lubrication lines to threaded ports in centralized lubrication systems. Their compact elbow configuration allows lubrication lines to be routed at a 90° angle, making them suitable for installations where space or connection orientation may be limited.
These fittings feature a push-in connection for compatible lubrication line components and a male threaded connection for installation into the lubrication system. Available in multiple tube sizes and thread configurations, they provide a convenient solution for routing lubricant through machinery and equipment.

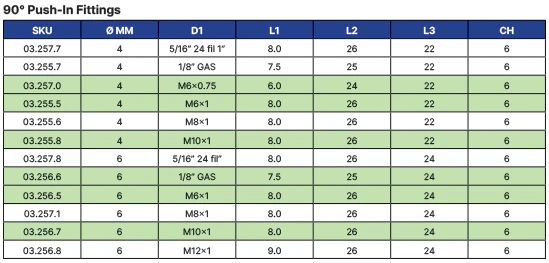

Available Variations
- 4 mm Tube × M6x0.75 Male Thread (03.257.0)
- 4 mm Tube × M6x1 Male Thread (03.255.5)
- 4 mm Tube × M10x1 Male Thread (03.255.8)
- 6 mm Tube × M6x1 Male Thread (03.256.5)
- 6 mm Tube × M10x1 Male Thread (03.256.7)
- 6 mm Tube × 1/8" GAS Male Thread (03.256.6)
- 6 mm Tube × 1/4" GAS Male Thread (03.257.2)
Call to Order
- 4 mm Tube × 5/16"-24 Male Thread (03.257.7)
- 4 mm Tube × 1/8" GAS Male Thread (03.255.7)
- 4 mm Tube × M8x1 Male Thread (03.255.6)
- 6 mm Tube × 5/16"-24 Male Thread (03.257.8)
- 6 mm Tube × M8x1 Male Thread (03.257.1)
- 6 mm Tube × M12x1 Male Thread (03.256.8)
Hose Stud Compatibility
These push-in fittings are designed for use with compatible ILC double-groove hose studs. They are not compatible with Fritsche single-groove hose studs. The correct ILC hose stud must be selected according to the fitting size and lubrication line requirements.
Special Order Information
Fittings marked Call to Order are not part of our regular stock and are available by special order with a minimum order quantity of 50 pieces per fitting. Lead times may vary.
Please contact us online or call (413) 788-5823 for availability and ordering information.
