Description
ILC Straight Push-In Fittings
Straight push-in fittings designed for use with ILC double-groove hose studs.

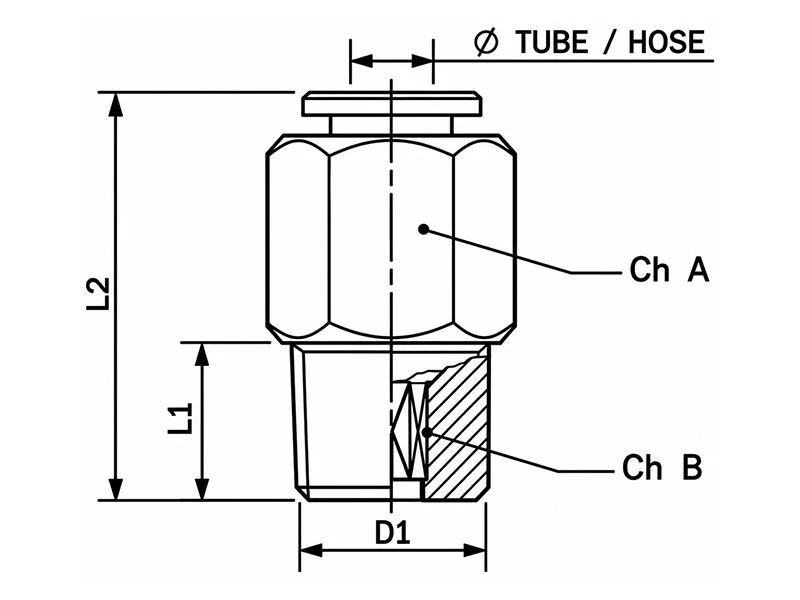

ILC Straight Push-In Fittings are designed for connecting lubrication lines to compatible threaded ports in centralized lubrication systems. These fittings feature a straight configuration with a push-in connection on one end and a male threaded connection on the other, providing a secure, leak-resistant connection when assembled with the appropriate components.
Available in multiple connection sizes and thread configurations, these fittings are selected according to the requirements of the lubrication system and the corresponding hose stud assembly.
Hose Stud Compatibility
These push-in fittings are designed specifically for use with ILC Hose Studs, which feature a double-groove design. They are not compatible with Fritsche Hose Studs, which use a single-groove design. The correct ILC Hose Stud must be selected according to the fitting size and lubrication line requirements.

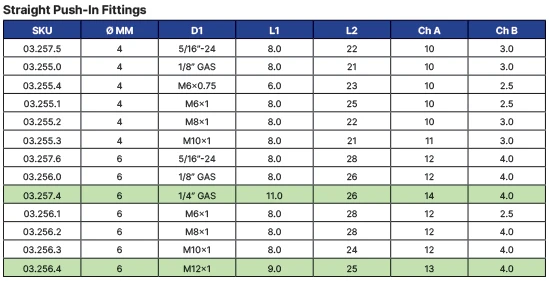

Available Variations
Regular Stock
- 6 mm × M12x1 Male Thread (03.256.4)
- 6 mm × 1/4" BSPT Male Thread (03.257.4)
Special Order - Call to Order
- 4 mm × 5/16"-24 Male Thread (03.257.5)
- 4 mm × 1/8" BSP Male Thread (03.255.0)
- 4 mm × M6x0.75 Male Thread (03.255.4)
- 4 mm × M6x1 Male Thread (03.255.1)
- 4 mm × M8x1 Male Thread (03.255.2)
- 4 mm × M10x1 Male Thread (03.255.3)
- 6 mm × 5/16"-24 Male Thread (03.257.6)
- 6 mm × 1/8" BSP Male Thread (03.256.0)
- 6 mm × M6x1 Male Thread (03.256.1)
- 6 mm × M8x1 Male Thread (03.256.2)
- 6 mm × M10x1 Male Thread (03.256.3)
Special Order Information
Fittings marked Call to Order are not part of our regular stock and are available by special order with a minimum order quantity of 50 pieces per fitting. Lead times may vary.
Please contact us online or call (413) 788-5823 for availability and ordering information.
