ILC Compression Nuts
Compression nuts for securing tubing connections in centralized lubrication systems.
ILC Compression Nuts are designed for use with compatible compression fittings in centralized lubrication systems. These components work with the appropriate ferrules or sleeves to help secure tubing and create reliable, leak-resistant connections.
Available in different male and female thread configurations, these compression nuts are designed for use with specific nut-and-sleeve or nut-and-olive fitting assemblies. Proper selection depends on the tubing diameter, thread specifications, and corresponding compression fitting components.
Hose and Fitting Compatibility
ILC compression nuts must be matched with the appropriate ferrule or sleeve and corresponding fitting assembly. Nut-and-sleeve and nut-and-olive configurations are not necessarily interchangeable.
Available Variations

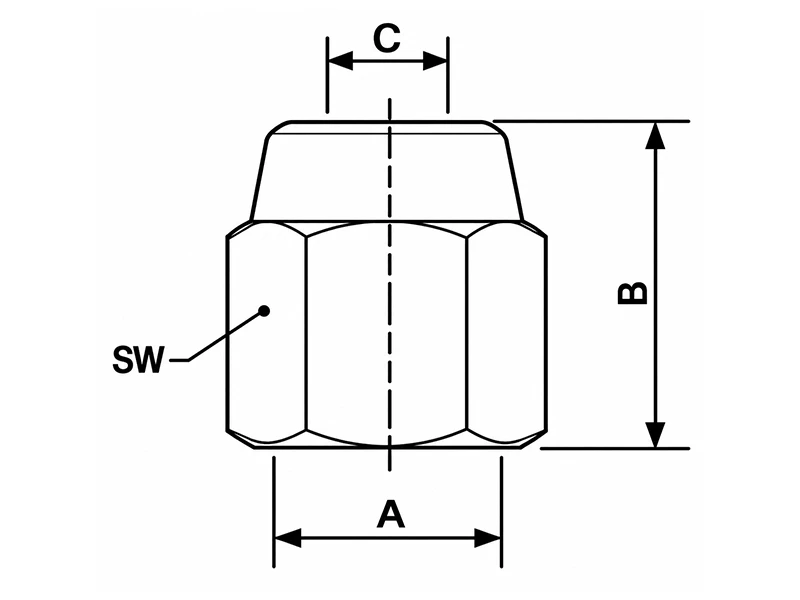

Female Nuts - Sleeve Style
- 4 mm × M10x1 (04.071.0)
- 6 mm × M10x1 (04.072.0)

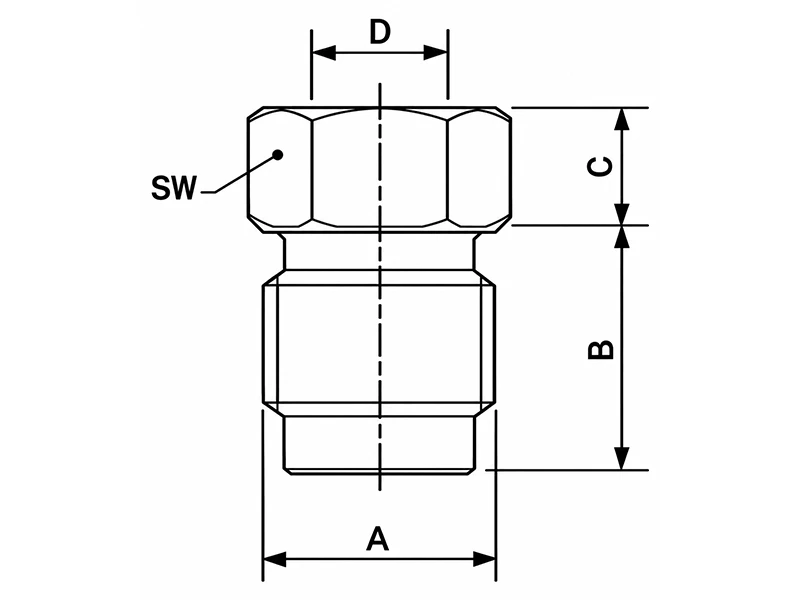

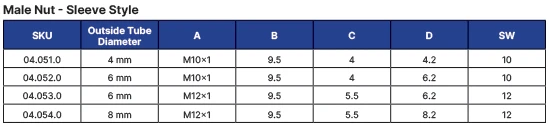

Male Nuts - Sleeve Style
- 4 mm × M10x1 (04.051.0) - Call to Order
- 6 mm × M10x1 (04.052.0) - Call to Order
- 6 mm × M12x1 (04.053.0) - Call to Order
- 8 mm × M12x1 (04.054.0) - Call to Order

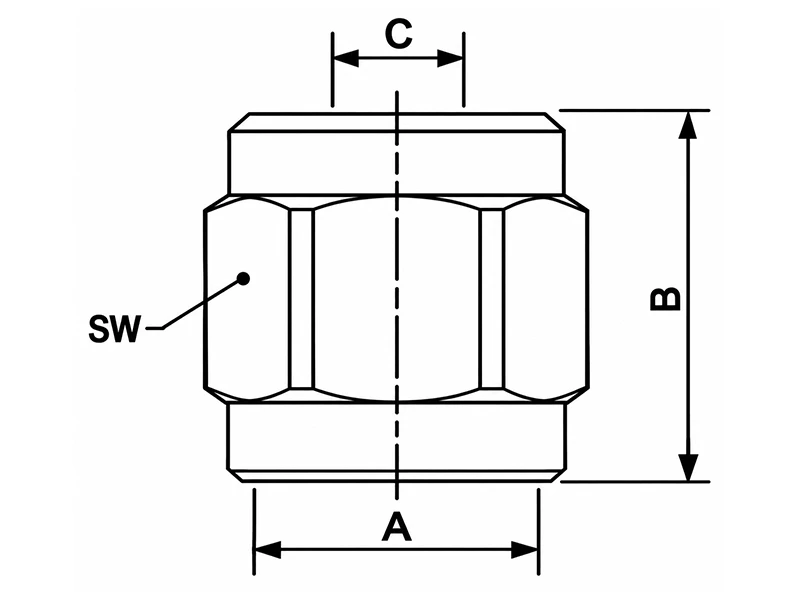

Female Nuts - Olive Style
- 4 mm × 5/16" (04.001.0) - Call to Order

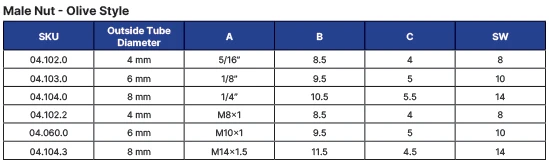

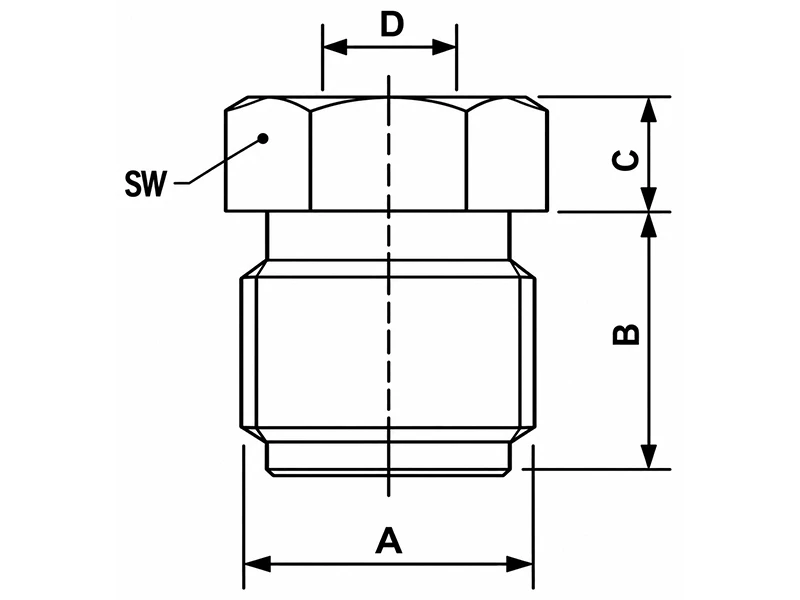

Male Nuts - Olive Style
- 4 mm × 5/16" (04.102.0) - Call to Order
- 6 mm × 1/8" (04.103.0) - Call to Order
- 8 mm × 1/4" (04.104.0) - Call to Order
- 4 mm × M8x1 (04.102.2) - Call to Order
- 6 mm × M10x1 (04.060.0) - Call to Order
- 8 mm × M14x1.5 (04.104.3) - Call to Order
Special Order Availability
Configurations marked Call to Order are not part of our regular stock and may be available by special order. Minimum order quantities and lead times vary. Please contact us online or call (413) 788-5823 for availability and ordering information.
