Description
Hose Studs 90° for 11.3mm OD High-Pressure Hose
90° hose studs for tight routing and reliable high-pressure connections in lubrication systems.
These 90° hose studs are designed for use with 11.3mm OD high-pressure hoses in centralized lubrication systems. The right-angle configuration enables clean, compact routing in limited spaces while maintaining a secure, leak-resistant connection. Compatible with threaded sleeves and push locks or compression fittings, these hose studs provide durable, consistent performance across a variety of demanding environments.
Most models are available with or without a groove for compatibility with push locks when required.

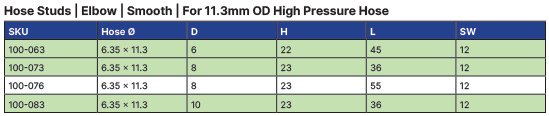

Variations
- 100-063 6mm - L: 45mm
- 100-073 8mm - L: 36mm
- 100-083 10mm - L: 36mm
Comparable Items
- Hose Studs 90° for 11.3mm OD High-Pressure Hose - Stainless Steel
- Hose Studs 90° for 8.6mm OD High-Pressure Hose - Steel Zinc-nickel (CrVIF)
- Hose Studs 90° for 8.6mm OD High-Pressure Hose - Stainless Steel
Material & Benefits: Steel Zinc-nickel (CrVIF)
Our steel fittings feature a Zinc-nickel (CrVIF) alloy coating, electroplated directly onto the surface for superior corrosion resistance and durability. This finish combines approximately 10–15% nickel with zinc to form a hard, smooth, and long-lasting protective layer—making it an ideal alternative to traditional zinc or cadmium coatings.
Benefits of Zinc-nickel Coating
- Provides up to 10x more corrosion resistance than standard zinc
- Offers improved wear resistance for moving parts
- Withstands thermal stress better than conventional finishes
- Commonly used in automotive and aerospace applications
Additional Information
For more information about Hose Studs, or to determine if our lubrication equipment is the right choice for your application, contact us online or at (413) 788-5823.
