ILC Closure Plugs for Lubrication Systems

ILC Closure Plugs for Lubrication Systems

Threaded closure plugs for sealing unused ports in centralized lubrication systems.

ILC Closure Plugs are designed for sealing unused threaded ports and connections in centralized lubrication systems. These components help prevent lubricant leakage and protect unused openings from contamination.

Available in different thread sizes and sealing configurations, these plugs are designed to accommodate various lubrication system components and connection requirements. The appropriate closure plug should be selected according to the thread specifications and sealing requirements of the corresponding port.

Available Variations

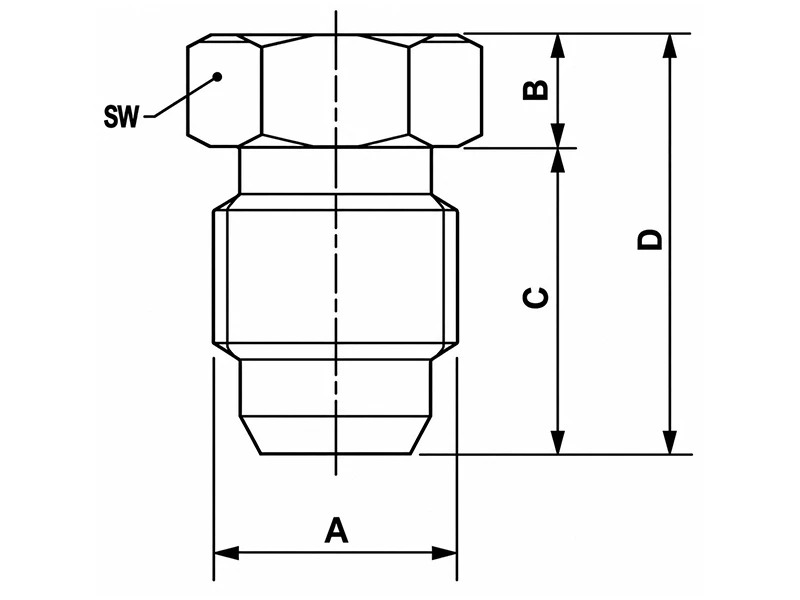

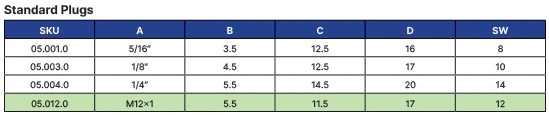

Standard Plugs

• 5/16" Male Thread (05.001.0) - Call to Order
• 1/8" Male Thread (05.003.0) - Call to Order
• 1/4" Male Thread (05.004.0) - Call to Order
• M12x1 Male Thread (05.012.0)

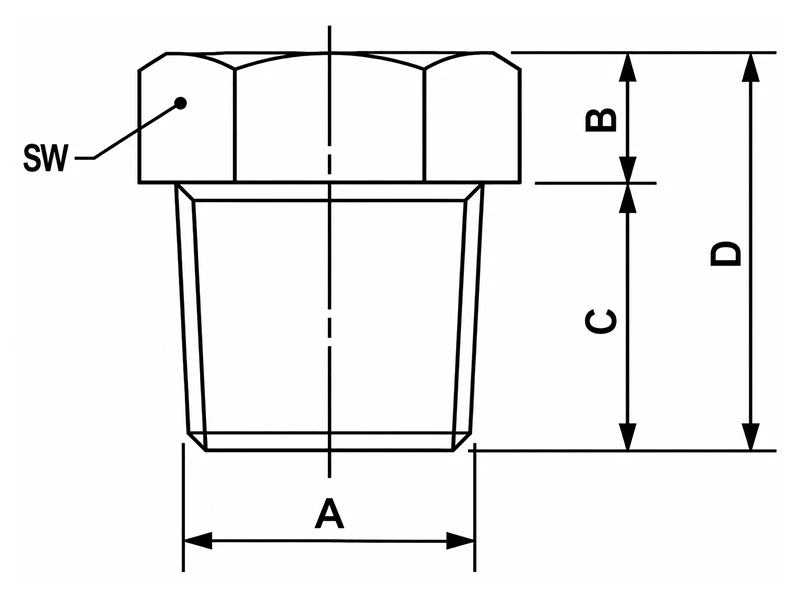

Short Plugs

• 1/8" Male Thread (05.001.1) - Call to Order

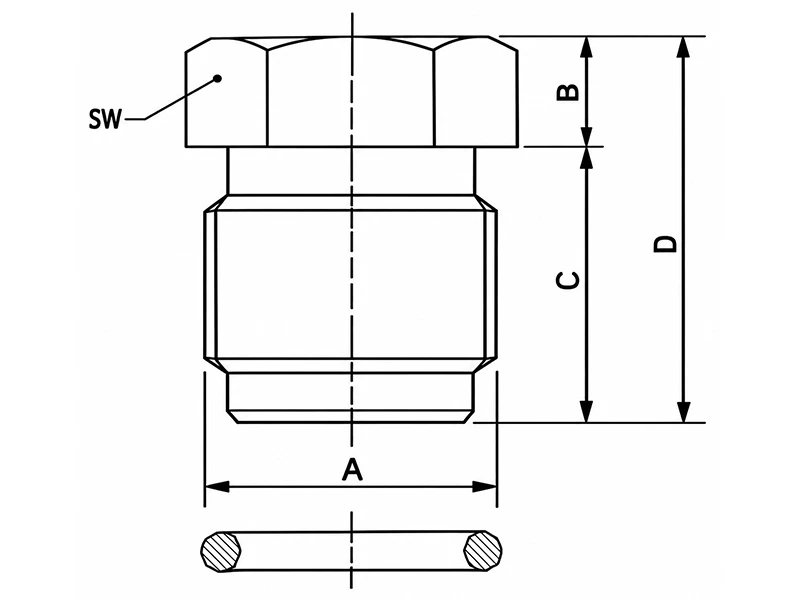

O-Ring Plugs

• M10x1 Male Thread (05.011.0)

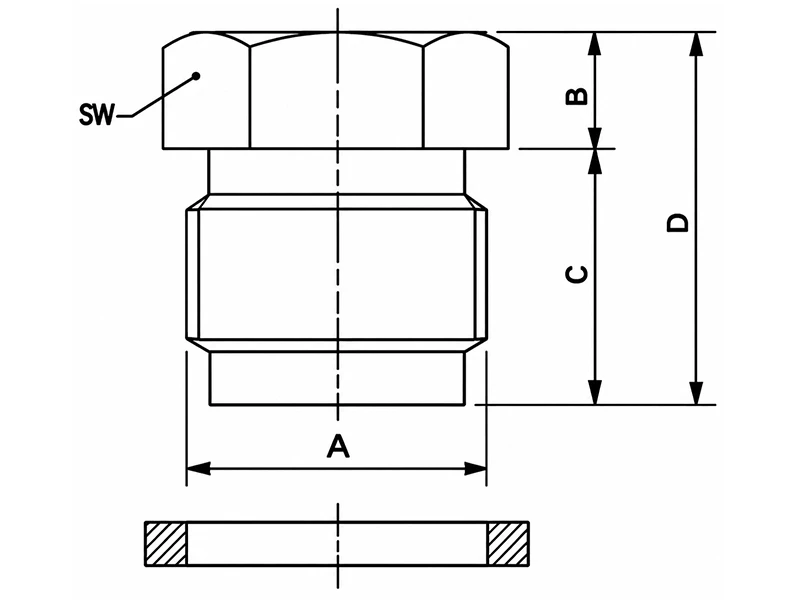

Washer-Sealed Plugs

• M8x1 Male Thread (05.001.2) - Call to Order
• M10x1 Male Thread (05.006.0) - Call to Order
• M12x1 Male Thread (05.013.0) - Call to Order

Special Order Availability

Configurations marked Call to Order are not part of our regular stock and may be available by special order. Minimum order quantities and lead times may vary. Please contact us online or call (413) 788-5823 for availability and ordering information.
