Description

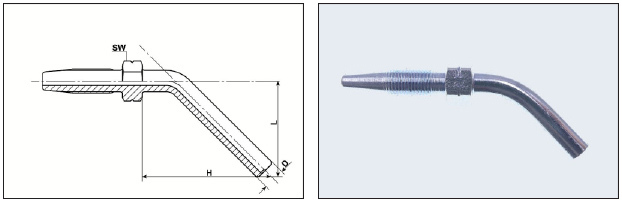

Hose Studs 45° for 8.6mm OD High-Pressure Hose
Angled fittings for space-saving, high-pressure hose connections in lubrication systems.
These 45° hose studs are designed for use with 8.6mm OD high-pressure hoses in centralized lubrication systems. The angled design allows for cleaner routing in confined spaces while helping to minimize hose strain and maintain a secure, leak-resistant connection. Compatible with threaded sleeves and push locks or compression fittings, these hose studs offer dependable performance across a wide range of applications.
Most models are available with or without a groove for compatibility with push locks when required.

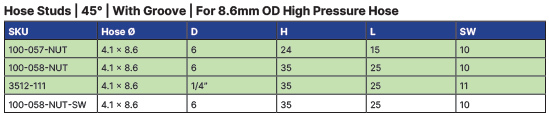

Variations
- 100-057-NUT 6mm - L: 15mm
- 100-058-NUT 6mm - L: 25mm
- 3512-110 1/4” - L: 25mm (For use with 100-050 threaded sleeve)
- 3512-111 1/4” - L: 25mm with groove (For use with 100-050 threaded sleeve)
Comparable Items
- Hose Studs 45° for 11.3mm OD High-Pressure Hose - Steel Zinc-nickel (CrVIF)
- Hose Studs 45° for 8.6mm OD High-Pressure Hose - Stainless Steel
Material & Benefits: Steel Zinc-nickel (CrVIF)
Our steel fittings feature a Zinc-nickel (CrVIF) alloy coating, electroplated directly onto the surface for superior corrosion resistance and durability. This finish combines approximately 10–15% nickel with zinc to form a hard, smooth, and long-lasting protective layer—making it an ideal alternative to traditional zinc or cadmium coatings.
Benefits of Zinc-nickel Coating
- Provides up to 10x more corrosion resistance than standard zinc
- Offers improved wear resistance for moving parts
- Withstands thermal stress better than conventional finishes
- Commonly used in automotive and aerospace applications
Additional Information
For more information about hose studs, or to determine if this product is right for your application, contact us online or at (413) 788-5823.
