Description
Hose Studs Straight for 11.3mm OD High-Pressure Hose
Straight hose studs for reliable, high-pressure hose connections in lubrication systems.
These straight hose studs are designed for use with 11.3mm OD high-pressure hoses in centralized lubrication systems. The straight configuration supports direct, in-line routing for clean installation and efficient fluid transfer. Compatible with threaded sleeves and push locks or compression fittings, these hose studs offer consistent, dependable performance across a range of applications.
Most models are available with or without a groove for compatibility with push locks when required.
Variations

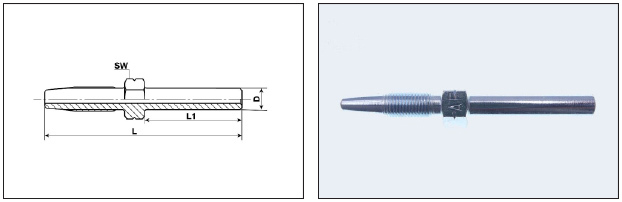

- 100-064-NUT 6mm - L: 65.5mm, L1: 22mm
- 100-074 8mm - L: 65.5mm, L1: 22mm
- 100-081 10mm - L: 73.5mm, L1: 30mm
Comparable Items
- Hose Studs Straight for 11.3mm OD High-Pressure Hose - Stainless Steel
- Hose Studs Straight for 8.6mm OD High-Pressure Hose - Stainless Steel
- Hose Studs Straight for 8.6mm OD High-Pressure Hose - Steel Zinc-nickel (CrVIF)
Material & Benefits: Steel Zinc-nickel (CrVIF)
Our steel fittings feature a Zinc-nickel (CrVIF) alloy coating, electroplated directly onto the surface for superior corrosion resistance and durability. This finish combines approximately 10–15% nickel with zinc to form a hard, smooth, and long-lasting protective layer—making it an ideal alternative to traditional zinc or cadmium coatings.
Benefits of Zinc-nickel Coating
- Provides up to 10x more corrosion resistance than standard zinc
- Offers improved wear resistance for moving parts
- Withstands thermal stress better than conventional finishes
- Commonly used in automotive and aerospace applications
Additional Information
For more information about hose studs, or to determine if this product is right for your application, contact us online or at (413) 788-5823.
